Auto Leveling Sensor Removal/Installation

NOTE:

For the headlight auto leveling system, there are two types, one with the auto leveling sensor and the other without the auto leveling sensor. For the headlight auto leveling system with the auto leveling sensor, remove/install the auto leveling sensor using the following procedure.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

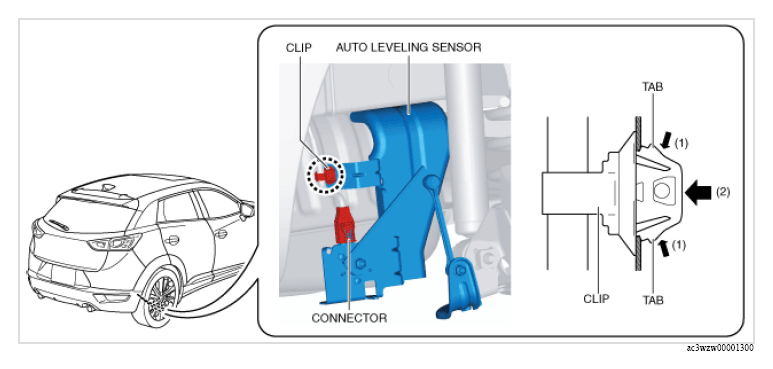

While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to remove the clip from the auto leveling sensor.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the bolt.

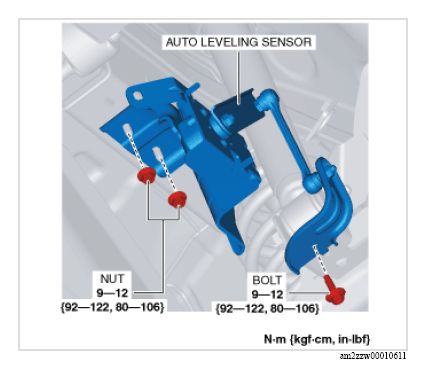

Fig 1: Auto Leveling Sensor, Bolt And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

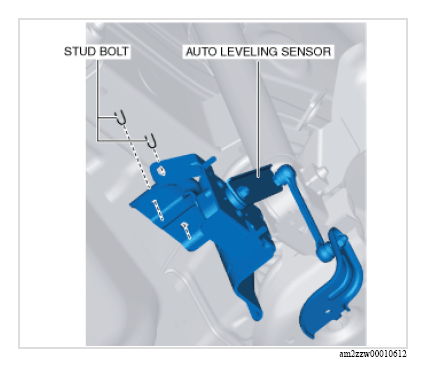

Pull out the auto leveling sensor from the stud bolts and remove it.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Perform headlight auto leveling system initialization. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
