On-Board Diagnostic - Blind Spot Monitoring Control Module
>>
Foreword
>>

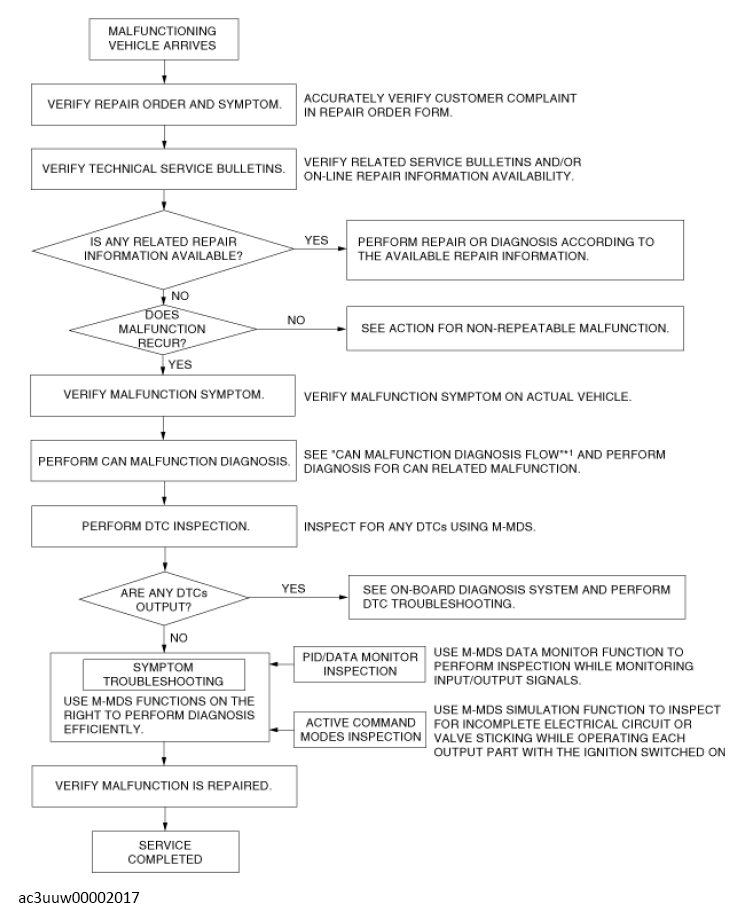

Troubleshooting Procedure
Troubleshooting Procedure
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
