Fuel-Filler Pipe Removal/Installation
>>
U.S.A. and CANADA Specs.
>>
Joint Hose Installation Note
Joint Hose Installation Note
Connect the joint hose to the fuel-filler pipe as shown in the figure.

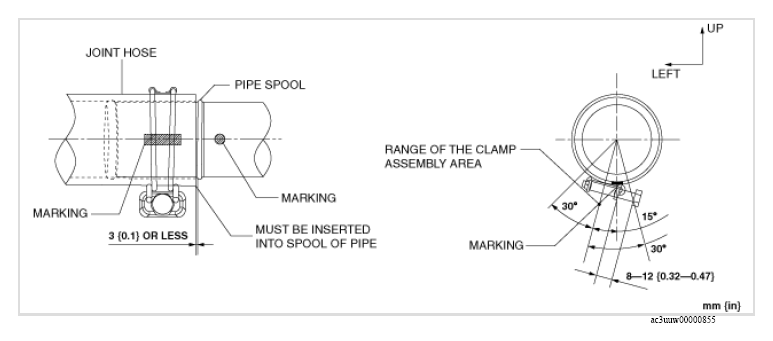

2WD
Courtesy of MAZDA MOTORS CORP.

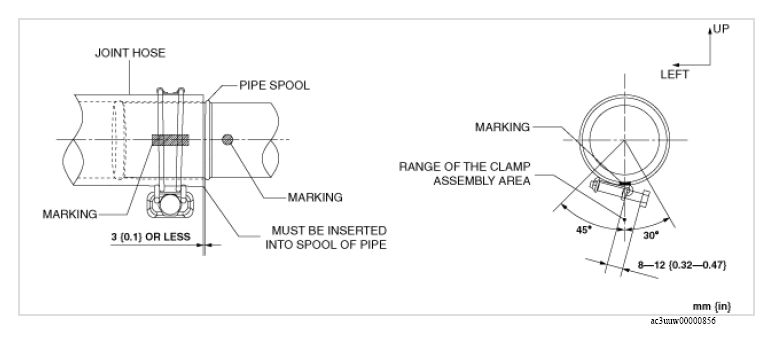

AWD
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
