AWD Control Module Inspection: Notes

• AWD control module terminal voltage can vary depending on measuring conditions and vehicle aging, resulting in misdiagnosis. Therefore, it is necessary to perform an overall inspection of the input/output systems and AWD control module to determine which part is malfunctioning.
• With the AWD control module connector connected, measure voltage by connecting the voltmeter negative (-) lead to the body ground and positive (+) lead to each AWD control module terminal.

• The terminal voltage at terminal A of types A and B differs depending on the differential oil temperature sensor.

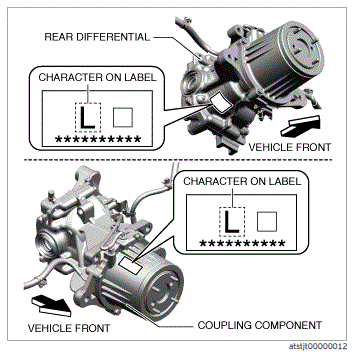

• The type of the differential oil temperature sensor is determined based on the character on the label shown in the figure and the connector color on the part side of the differential oil temperature sensor.

Courtesy of MAZDA MOTORS CORP.

Type A

• Character on label: L
• Connector color: Gray

Type B

• Character on label: Q
• Connector color: Black
