DTC B1252-87: Communication Error With Auxiliary Jack/USB Port/SD Card Slot Hub (Connectivity Master Unit): Notes

DTC B1252:87 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Communication error with auxiliary jack/USB port/SD card slot hub
Detection condition	With the ignition switched ON (engine off or on), the connectivity master unit (CMU) cannot receive a signal from the auxiliary jack/USB port/SD card slot hub.
Fail-safe	Not applicable

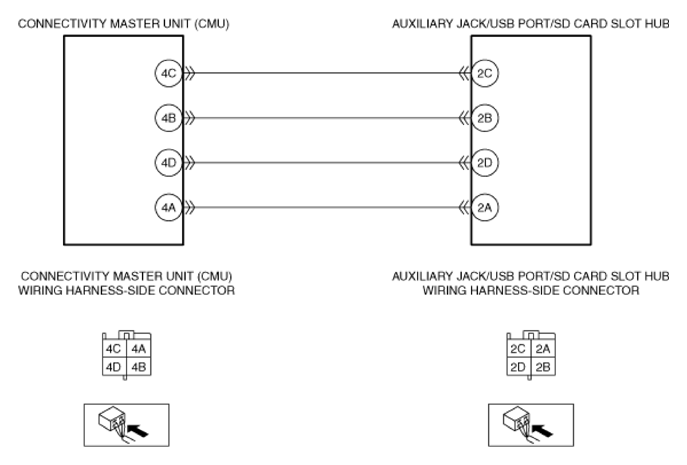

Possible cause	Auxiliary jack/USB port/SD card slot hub connector or terminal malfunction Connectivity master unit (CMU) connector or terminal malfunction Open circuit in wiring harness between the following terminals: Connectivity master unit (CMU) terminal 4B and auxiliary jack/USB port/SD card slot hub terminal 2B Connectivity master unit (CMU) terminal 4D and auxiliary jack/USB port/SD card slot hub terminal 2D Auxiliary jack/USB port/SD card slot hub malfunction Connectivity master unit (CMU) malfunction
Courtesy of MAZDA MOTORS CORP.
