Air Separate Tank Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING:

Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counter clockwise to the first stop. Step back while the pressure escapes.
When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the air cleaner, air hose and fresh-air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

Remove the air separate tank using the following procedure:

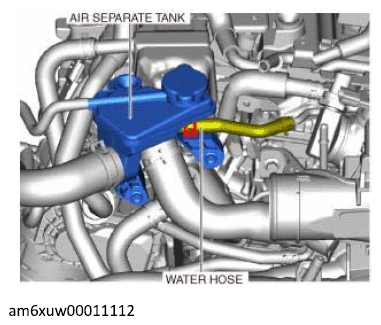

Disconnect the water hose. (See WATER HOSE INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.

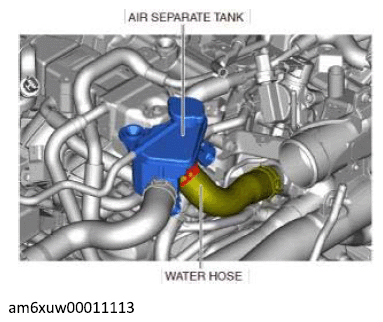

Disconnect the water hose. (See WATER HOSE INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.

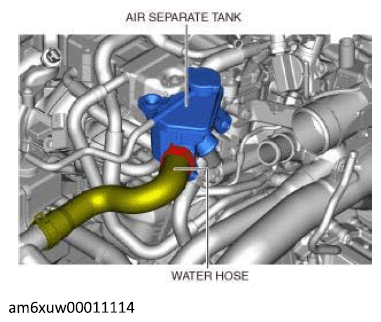

Disconnect the water hose. (See WATER HOSE INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.

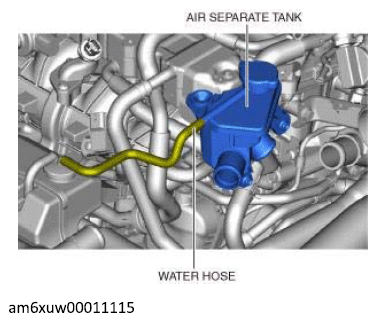

Disconnect the water hose. (See WATER HOSE INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.

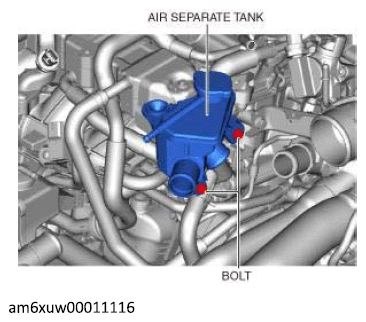

Remove the bolts.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
