Neutral Switch Removal/Installation
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION
.)
- Air cleaner cover
- Air cleaner element
- Fresh-air duct
- Air cleaner case
- Air hose
- Resonance chamber
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

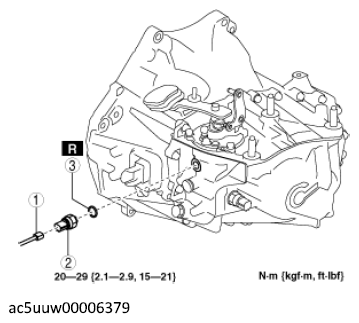

COMPONENT DESCRIPTION
| 1 | Connector |
| 2 | Neutral switch |
| 3 | Gasket |
