Starter Disassembly/Assembly
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.

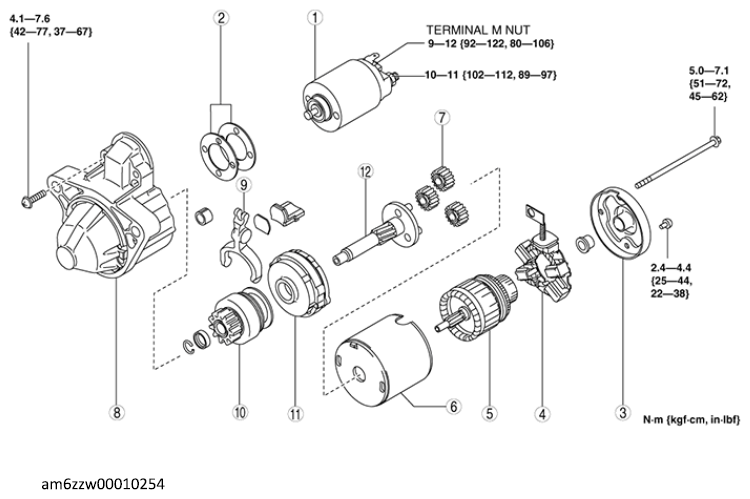

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Magnetic switch |
| 2 |
Adjustment washer |
| 3 |
Rear housing |
| 4 |
Brush and brush holder |
| 5 |
Armature |
| 6 |
Yoke |
| 7 |
Planetary gear |
| 8 |
Front cover |
| 9 |
Lever |
| 10 |
Drive pinion |
| 11 |
Internal gear |
| 12 |
Gear shaft |
