Ignition System Location Index
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

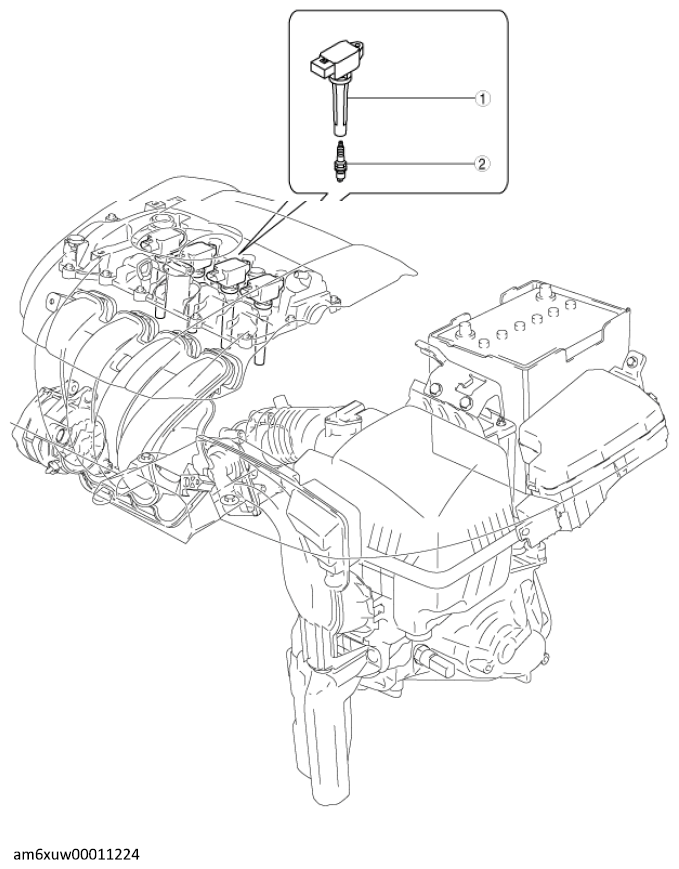

COMPONENT DESCRIPTION
| 1 | Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .) (See IGNITION COIL INSPECTION .) |
| 2 | Spark plug (See SPARK PLUG REMOVAL/INSTALLATION .) (See SPARK PLUG INSPECTION .) |
