Glass Panel Adjustment

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Fully close the glass panel.
Measure the gap and height between the glass panel and body.
Loosen the installation screws and adjust the glass panel.

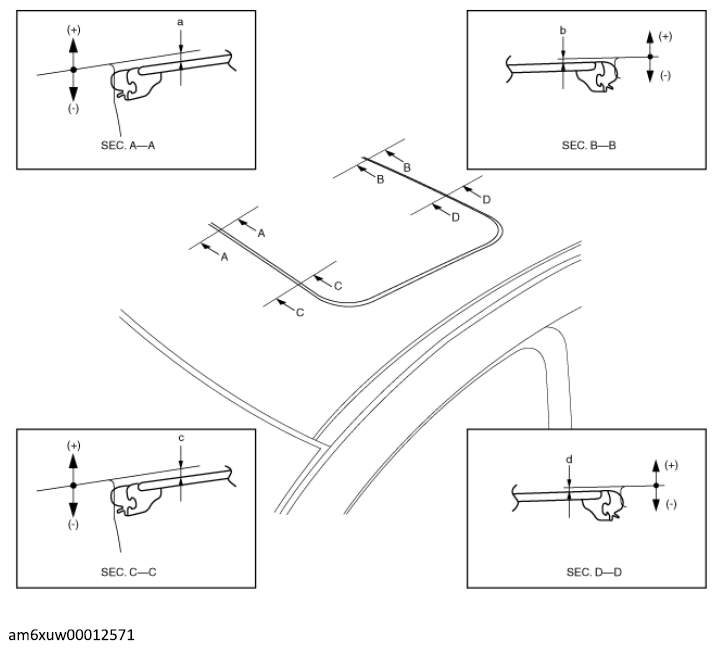

Fig 1: Measuring Gap And Height Between Glass Panel And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. -2.3-0.3 mm {-0.09-0.01 in}
2. -2.2-0.4 mm {-0.08-0.01 in}
3. -1.9-0.7 mm {-0.07-0.02 in}
4. -2.1-0.4 mm {-0.08-0.01 in}
Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION .)
Insert a plastic card between the weatherstrip and the body of the vehicle. Verify that the sunroof is shut tightly (there is resistance when the plastic card is moved).

Fig 2: Inspecting Clearance Between Weatherstrip And Body (Vehicle)
Courtesy of MAZDA MOTORS CORP.
- If the sunroof is not shut tightly, readjust by performing Steps 3 and 4.
