Glove Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Open the glove compartment.
  3. Remove the glove compartment light bulb.

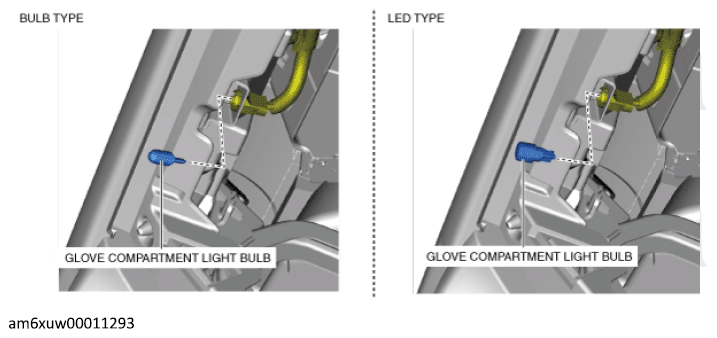

    Fig 1: Glove Compartment Light Bulb
    G12234907Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
