Vehicle Interior

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Disconnect the connector from the trunk lid opener switch.

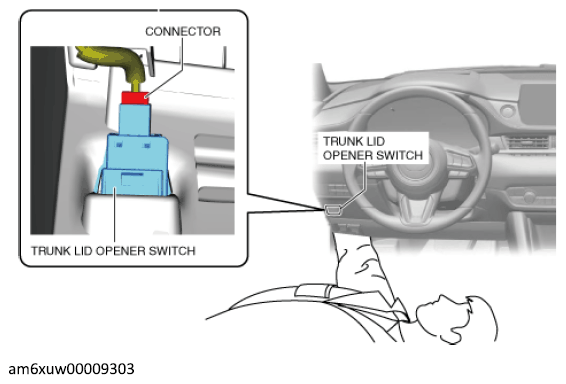

    Fig 1: Trunk Lid Opener Switch And Connector
    G12236338Courtesy of MAZDA MOTORS CORP.
  3. While pressing the trunk lid opener switch tab in the direction of arrow (1) shown in the figure below, press it in the direction of arrow (2) to detach the trunk lid opener switch tab from the driver-side lower panel.

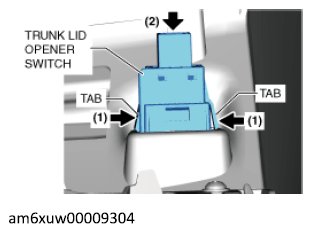

    Fig 2: Pressing Trunk Lid Opener Switch Tab
    G12236339Courtesy of MAZDA MOTORS CORP.
  4. Remove the trunk lid opener switch from the driver-side lower panel.
  5. Install in the reverse order of removal.
