Trunk Lid Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lock bezel in the direction of the arrow shown in the figure below while detaching tabs.

Fig 1: Lock Bezel
Courtesy of MAZDA MOTORS CORP.
Remove the bolts, then remove the trunk lid lock striker, (See TRUNK LID ADJUSTMENT Trunk Lid Lock Striker Installation Note below.)

Fig 2: Trunk Lid Lock Striker And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Trunk Lid Lock Striker Installation Note
- Refer to [TRUNK LID ADJUSTMENT] and adjust the trunk lid lock striker so that the height difference and gap of the trunk lid is within the specification. (See TRUNK LID ADJUSTMENT .)

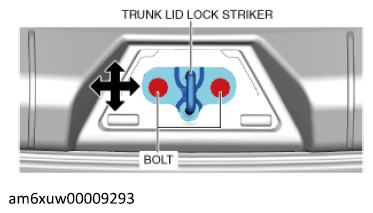

Fig 3: Adjusting Trunk Lid Lock Striker
Courtesy of MAZDA MOTORS CORP.
