Passenger's Side

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the power window subswitch cover. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
  3. While pulling the power window subswitch cover in the direction of arrow (1) shown in the figure below, pull the door lock switch in the direction of arrow (2) shown in the figure below, and detach the door lock switch tabs from the power window subswitch cover.

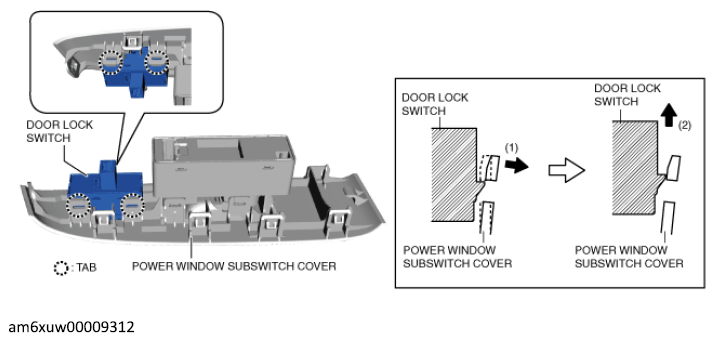

    Fig 1: Pulling Power Window Subswitch Cover
    G12236164Courtesy of MAZDA MOTORS CORP.
  4. Detach all of the door lock switch tabs from the power window switch cover and remove the door lock switch.
  5. Install in the reverse order of removal.
