Windshield Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the nozzle is adjusted by inserting a stick-like object into the nozzle, it could deform the injection nozzle and the washer fluid may not spray normally. When adjusting the nozzle, do not insert objects into the injection nozzle.

Insert a tape-wrapped precision flathead screwdriver into the adjustment hole of the windshield washer nozzle and adjust it to the area where washer fluid is sprayed as shown in the figure below.

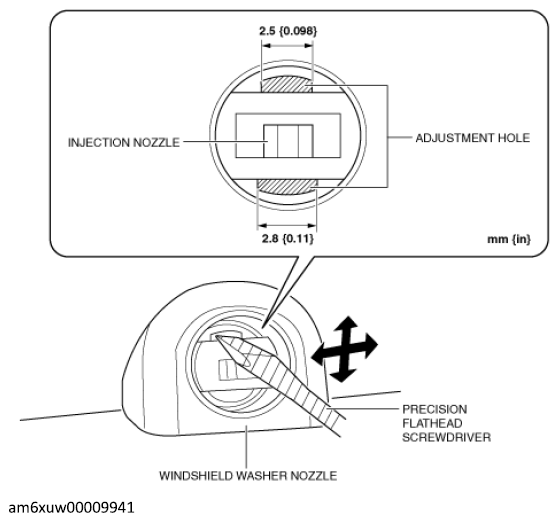

Fig 1: Adjusting Windshield Washer Nozzle
Courtesy of MAZDA MOTORS CORP.

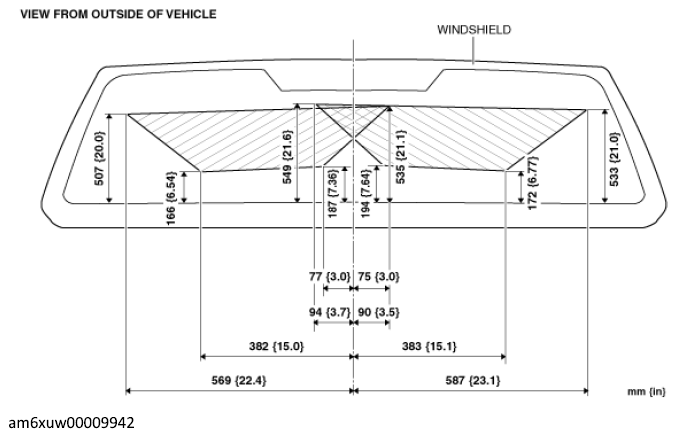

Fig 2: Checking Washer Fluid Spray Area Dimension On Windshield
Courtesy of MAZDA MOTORS CORP.
