Washer Motor Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the fresh-air duct installation bolts. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)] .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Disconnect the washer motor connector from the washer motor.

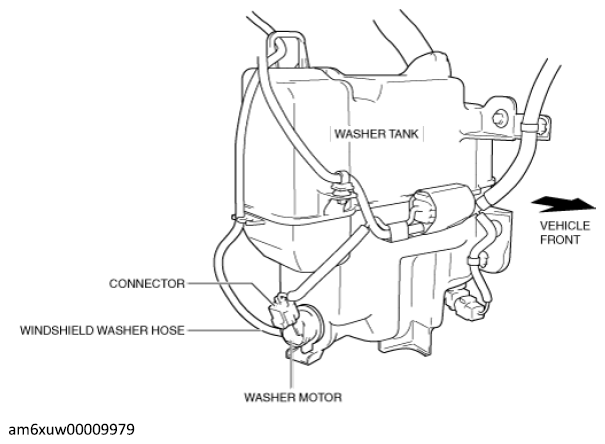

Fig 1: Windshield Washer Hose, Washer Motor, Washer Tank And Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the windshield washer hose from the washer motor.
NOTE:
- If the washer motor is removed with washer fluid in the washer tank, the washer fluid may leak out. When removing the washer motor from the washer tank, place a container under the washer tank to collect washer fluid, and perform the procedure.
Rotate the washer motor counterclockwise/clockwise rotation repeatedly in the direction of the arrows (1) and (2) shown in the figure below, and then remove it in the direction of the arrow (3).

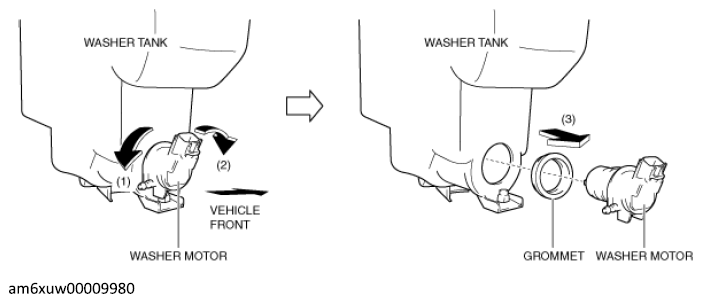

Fig 2: Rotating Washer Motor Counterclockwise/Clockwise
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
