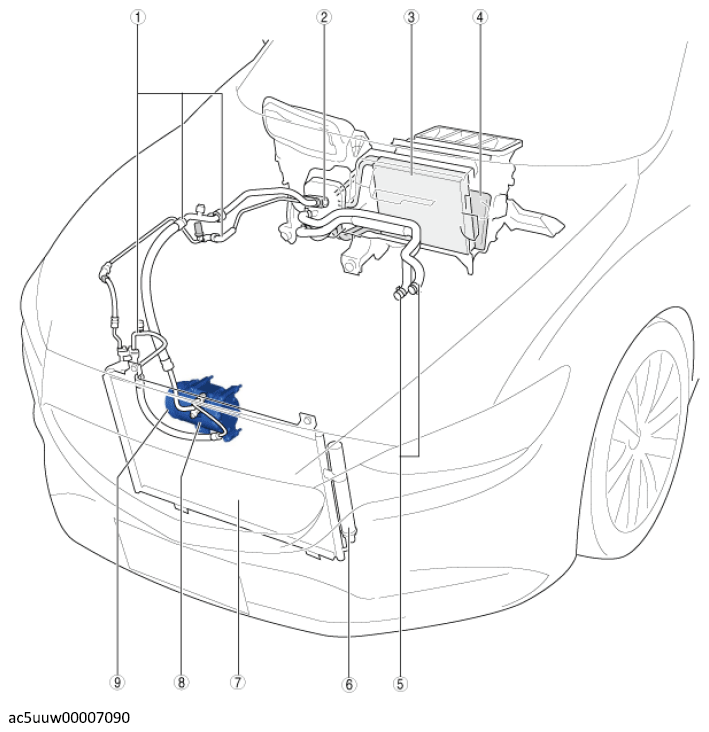

Structural View (SKYACTIV-G 2.5)
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT DESCRIPTION
| 1 | Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION (VIN 5, VIN M) .) |
| 2 | Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION .) |
| 3 | Evaporator (See EVAPORATOR INSPECTION .) |
| 4 | Heater core (See HEATER CORE INSPECTION .) |
| 5 | Heater hose (See HEATER HOSE REMOVAL/INSTALLATION (VIN 5, VIN M) .) |
| 6 | Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION (VIN 5, VIN M) .) |
| 7 | Condenser (See CONDENSER REMOVAL/INSTALLATION (VIN 5, VIN M) .) (See CONDENSER INSPECTION (VIN 5, VIN M) .) |
| 8 | A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION (VIN 5, VIN M) .) |
| 9 | Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (VIN 5, VIN M) .) (See MAGNETIC CLUTCH ADJUSTMENT (VIN 5, VIN M) .) (See MAGNETIC CLUTCH INSPECTION (VIN 5, VIN M) .) |
