Intermediate Shaft Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Align the alignment marks on the steering column and the steering gear (pinion), which were placed before removing the intermediate shaft, and install the intermediate shaft.

Fig 1: Steering Gear And Intermediate Shaft Alignment Mark
Courtesy of MAZDA MOTORS CORP.
NOTE:
- When newly replacing the intermediate shaft, place alignment marks on the new part in the same position as the removed intermediate shaft.
Fig 2: Steering Column And Gear Side Alignment Mark
Courtesy of MAZDA MOTORS CORP.
Install in the order of joint bolt B and joint bolt A.

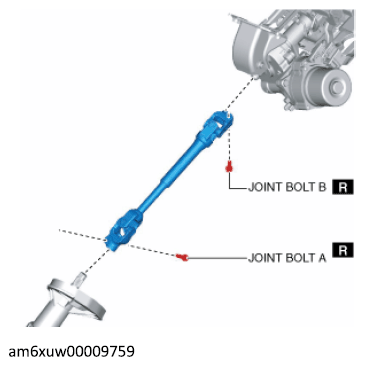

Fig 3: Intermediate Shaft Joint Bolts
Courtesy of MAZDA MOTORS CORP.
Verify that the joint bolt B flange is seated in the specified position.

Fig 4: Joint Bolt B With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Verify that joint bolt A is installed to the groove of the steering gear (pinion).

Fig 5: Locating Joint Bolt A Position

Courtesy of MAZDA MOTORS CORP.
