Glass Antenna Inspection
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the glass antenna terminal cover. (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .)

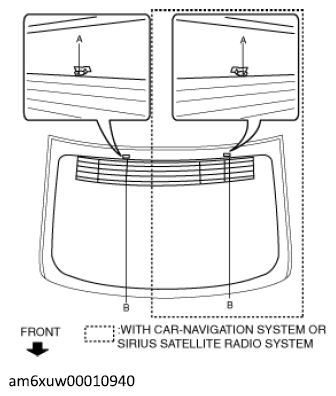

- Visually inspect the glass antenna for damage.

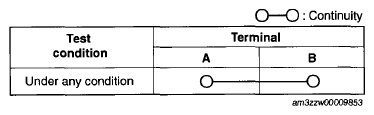

- Verify that the continuity between the glass antenna terminals is as indicated in the table.
- If not as indicated in the table, repair the glass antenna. (See REAR WINDOW DEFOGGER REPAIR .)
