Auxiliary Jack/USB Port/SD Card Slot Hub Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Using a remover tool, move the console-up in the order of arrows (1), (2) shown in the figure below, and detach the clips and guides.

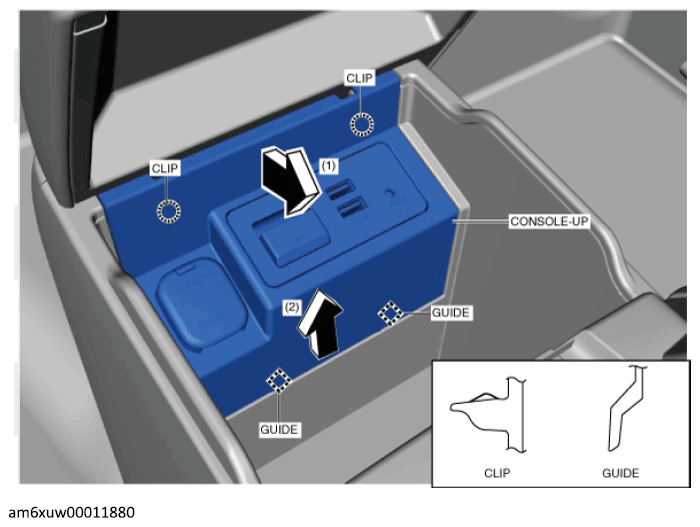

Fig 1: Moving Console-Up
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

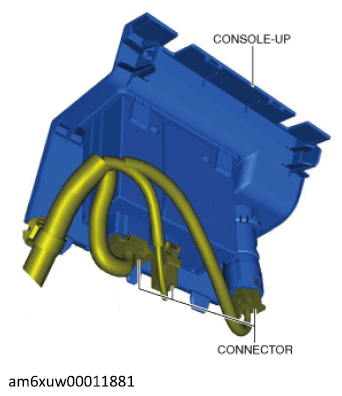

Fig 2: Console-Up Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the console-up.
While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows (1) shown in the figure below, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the console-up.

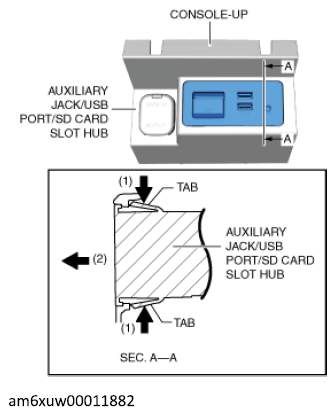

Fig 3: Pressing Tabs Of Auxiliary Jack/USB Port/SD Card Slot Hub
Courtesy of MAZDA MOTORS CORP.
Remove the auxiliary jack/USB port/SD card slot hub.
Install in the reverse order of removal.
