No. 1 Engine Mount Rubber and Front Crossmember Component Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When installing the front crossmember component to the vehicle, assemble the dust cover to the body-side installation area correctly to prevent water or foreign material from penetrating. Install the dust cover carefully so as not to pinch the dust cover sponge to the body-side installation area or put a fold line on the sponge by contact.

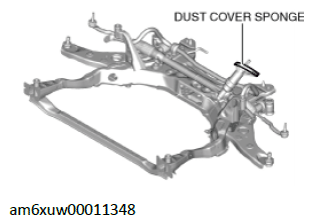

Fig 1: Dust Cover Sponge

G12232376

Courtesy of MAZDA MOTORS CORP.

Temporarily tighten bolt A shown in the figure below.

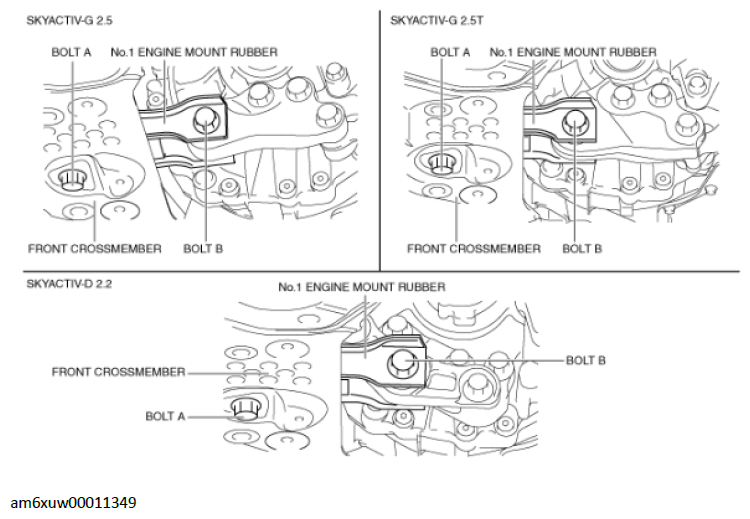

Fig 2: No. 1 Engine Mount Rubber And Front Crossmember Bolts
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten bolt B shown in the figure above.
Tighten bolt A.
Tightening torque

141-172 N.m {15-17 kgf.m, 104-126 ft.lbf}
Tighten bolt B.
Tightening torque

130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}
