Rear Splash Shield

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws.

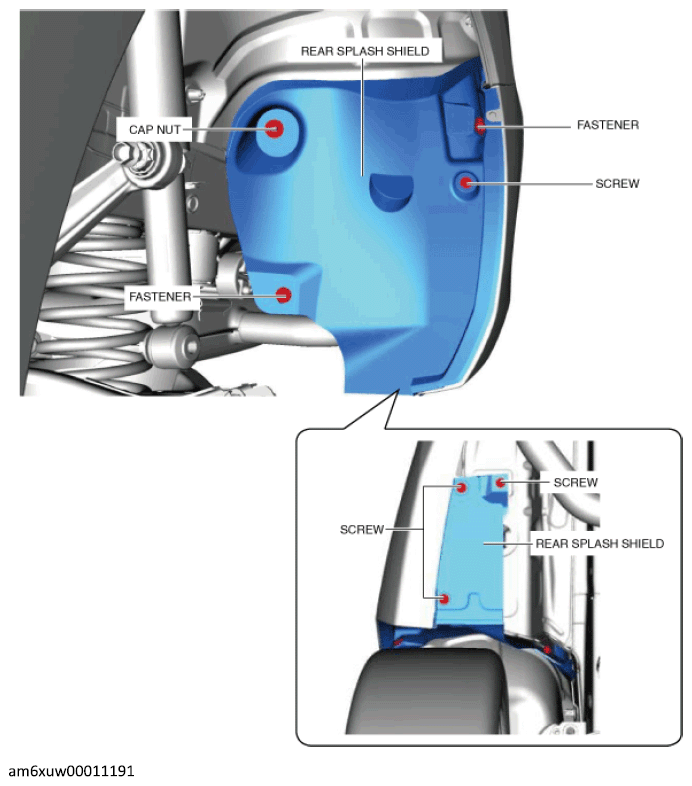

    Fig 1: Rear Splash Shield, Fasteners, Cap Nut And Screws
    G12234871Courtesy of MAZDA MOTORS CORP.
  2. Remove the fasteners.
  3. Remove the cap nut.
  4. Remove the rear splash shield.
  5. Install in the reverse order of removal.
