Side Step Molding Removal/Installation: Installation
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

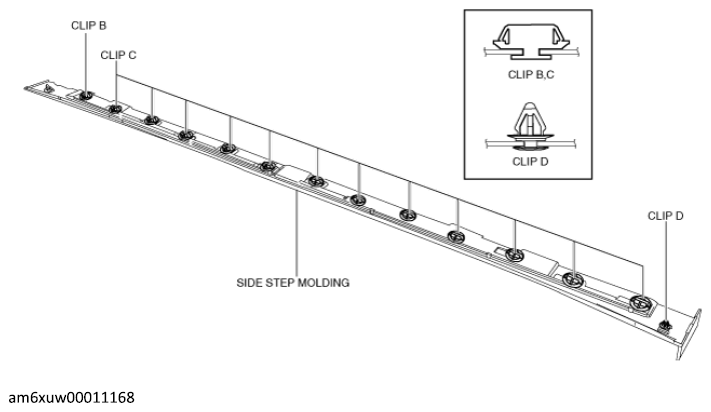

- Install clip B, clips C and clip D to the side step molding.

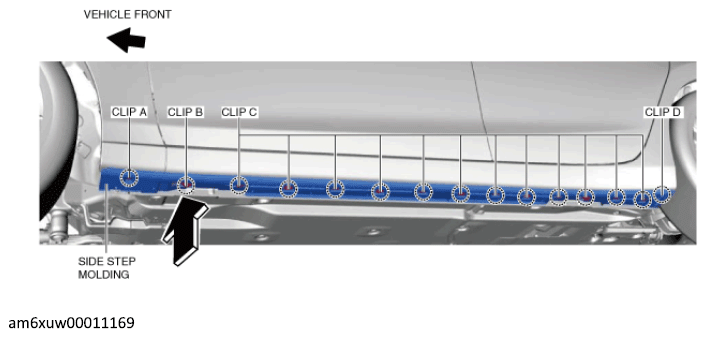

- Press the side step molding in the direction of the arrow shown in the figure below and install clip B to the body.
- Press the side step molding starting from the front of the vehicle and install clips A, C, and D.
- Install the mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
- Install the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)
