Clip Removal Note
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

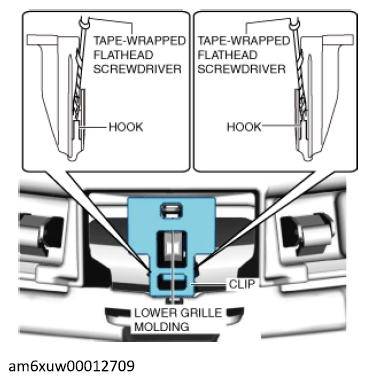

- Detach the hooks using a tape-wrapped flathead screwdriver.
Courtesy of MAZDA MOTORS CORP.

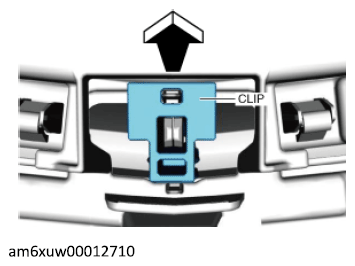

- Remove the clip in the direction of the arrow shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
