Ornament Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not allow oil to get on the ornament and the adhesion area of the ornament. Otherwise, the ornament could fall off easily.

Degrease the adhesion area of the ornament.
Warm the ornament to 15 °C {59 °F} to 40 °C {104 °F} using a heat gun.
Install the ornament to the position shown in the figure below.

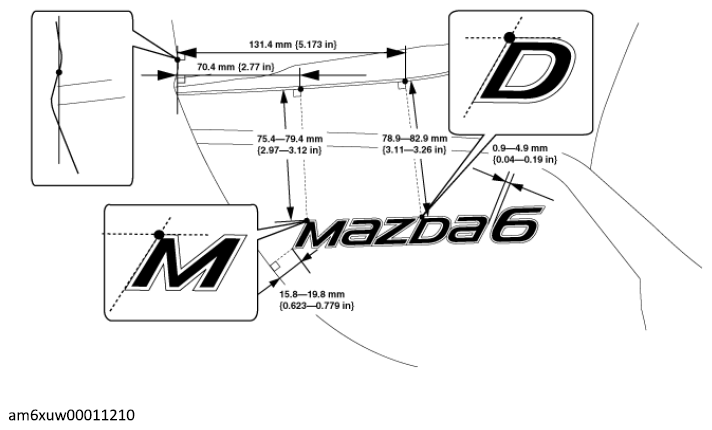

LH (2WD)

Fig 1: Checking Ornament Installation Dimension - LH (2WD)
Courtesy of MAZDA MOTORS CORP.

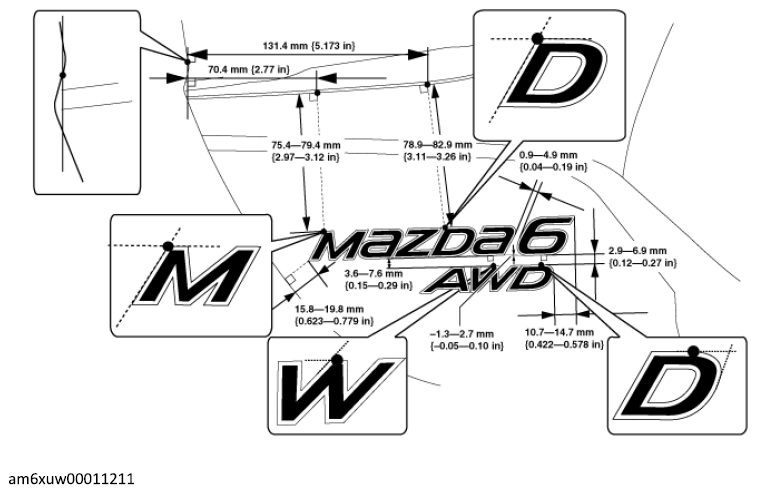

LH (AWD)

Fig 2: Checking Ornament Installation Dimension - LH (AWD)
Courtesy of MAZDA MOTORS CORP.

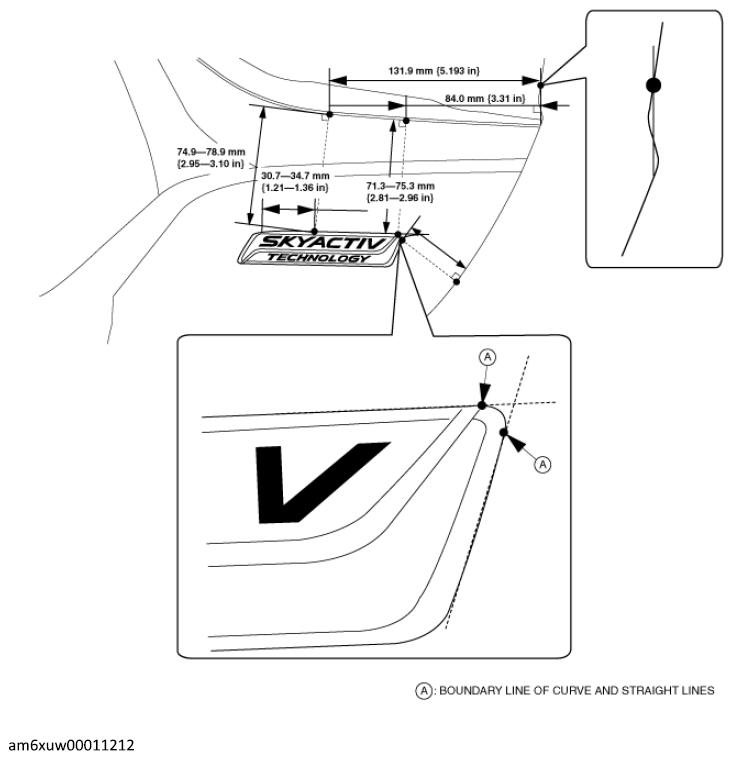

RH

Fig 3: Checking Ornament Installation Dimension - RH
Courtesy of MAZDA MOTORS CORP.
Verify that the clearance between the ornament and the adhesion area of the ornament is 0.8 mm {0.03 in} or less.
