Front Sash Molding Installation
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

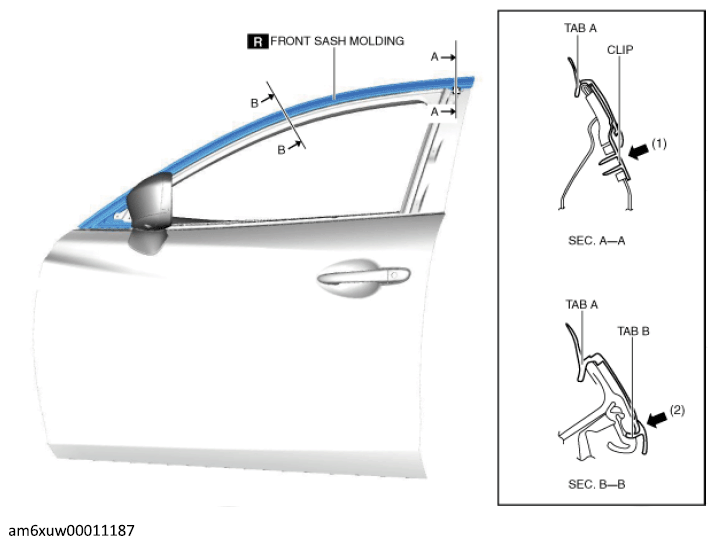

- Hook tab A to the body in the position where the clip aligns with the sash holes.
- Press the front sash molding in the direction of arrow (1) and install the clip to the body.CAUTION:
- Do not press the front sash molding in any place other than the rubber areas.
- Press the front sash molding from the vehicle front in the direction of arrow (2) and install tab B.NOTE:
- After installing the front sash molding, verify that tabs A and B are connected properly to the body.
- Install the following parts:
- Front door garnish. (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)
- Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
- Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
