Front Door Garnish Removal/Installation: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
- Remove the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)

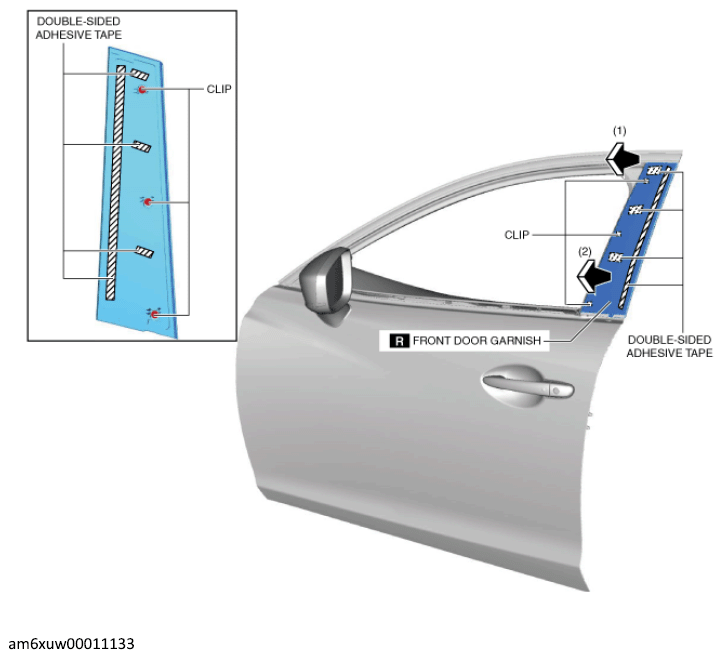

- Using a tape-wrapped fastener remover, remove the clips in the direction of arrow (1), (2) shown in the figure below.
- Remove the double-sided adhesive tape in the position shown in the figure below using the utility knife, remove the front door garnish from the body.
- Install in the reverse order of removal. (See Front Door Garnish Installation Note .)
