Rear Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Removing the rear door without supporting it could cause the rear door to fall and cause serious injury. Always perform the procedure with at least one other person to prevent the rear door from falling.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

Remove in the order shown in the figure below.

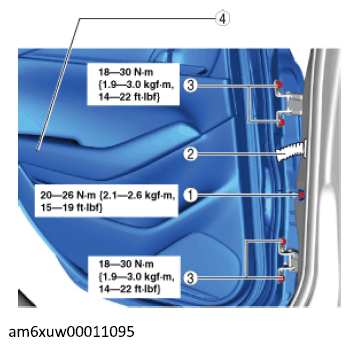

Fig 1: Rear Door, Connector And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Connector (See Connector Removal Note .)
3	Bolt
4	Rear door

Install in the reverse order of removal.
Adjust the rear door. (See DOOR ADJUSTMENT .)
