Connector Removal Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

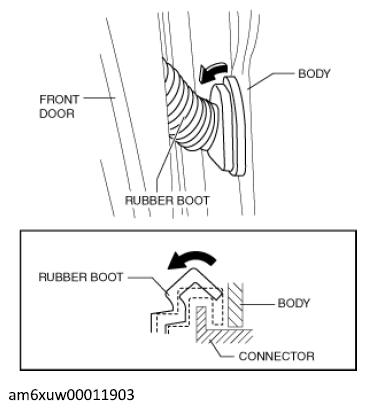

  1. Partially peel back the rubber boot in the direction of the arrow shown in the figure below and remove it from the connector.
    Fig 1: Peeling Back Rubber Boot
    G12236064Courtesy of MAZDA MOTORS CORP.

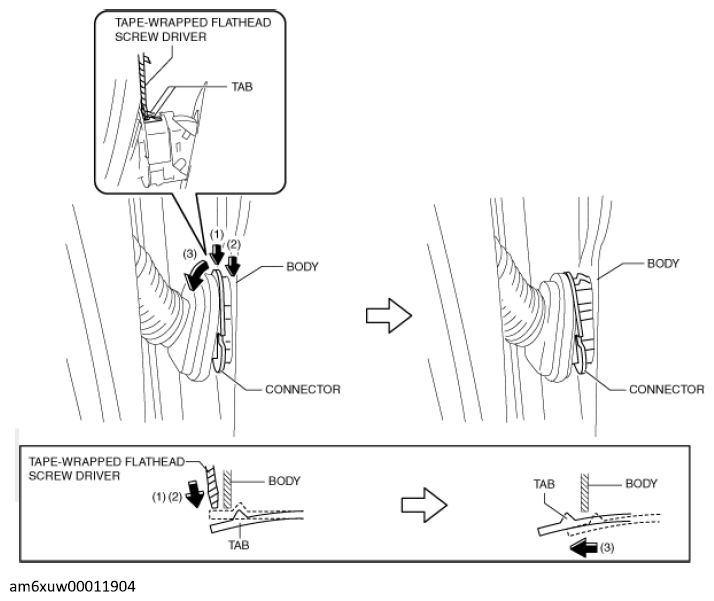

  2. Using a tape-wrapped flathead screwdriver, press the tabs in the directions of arrows (1) and (2) shown in the figure below and remove the upper part of the connector from the body in the direction of arrow (3).
    Fig 2: Upper Part Of Connector From Body
    G12236065Courtesy of MAZDA MOTORS CORP.

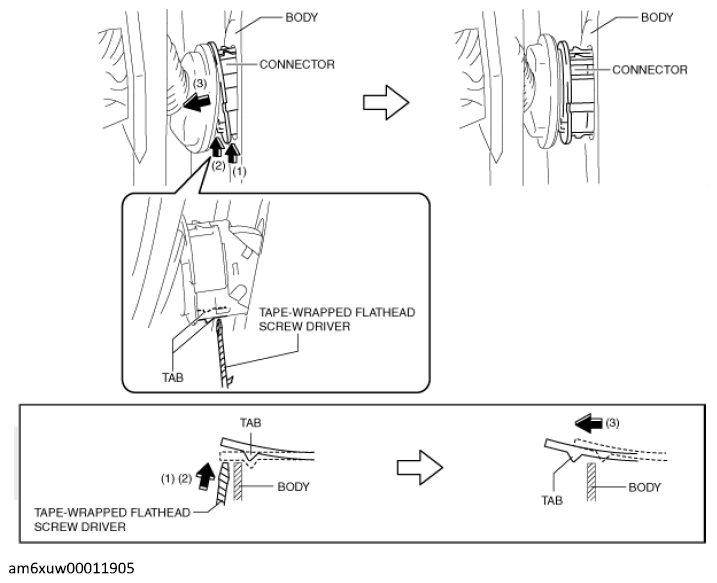

  3. Using a tape-wrapped flathead screwdriver, press the tabs in the directions of arrows (1) and (2) shown in the figure above and remove the connector from the body in the direction of arrow (3).
    Fig 3: Connector From Body
    G12236066Courtesy of MAZDA MOTORS CORP.

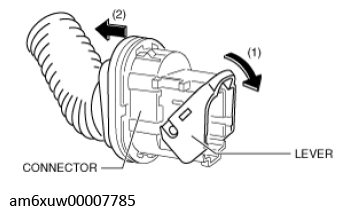

  4. Lower the lever in the direction of arrow (1), and disconnect the connector in the direction of arrow (2).
Fig 4: Lowering Lever
G11544065Courtesy of MAZDA MOTORS CORP.
