Propeller Shaft Inspection

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

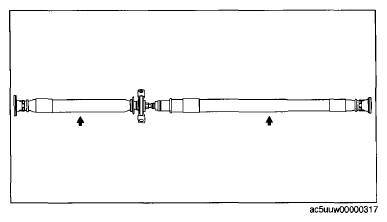

Measure the Propeller Shaft center runout using the Dial Gauge.

Fig 1: Measuring Propeller Shaft Center Runout Using Dial Gauge
Courtesy of MAZDA MOTORS CORP.

Propeller Shaft Maximum Runout

0.8 mm {0.031 in}
- If it exceeds the maximum specification, replace the Propeller Shaft as a single component. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Inspect the play and rotation of the joint by turning the Universal Joint in the directions shown by the arrows.

Fig 2: Inspecting Play And Rotation Of Universal Joint

Courtesy of MAZDA MOTORS CORP.

Propeller Shaft Rotation Torque

0.3-1.4 N.m {3.1-14.0 kgf.cm, 2.7-12.0 in.lbf}

If it is not within the specification, replace the Propeller Shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
