Rear Differential Mount Rubber Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel tank.
Support the rear differential component using a jack.

Fig 1: Supporting Rear Differential Component Using Jack
Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the rear crossmember and rear differential mount rubber as shown in the figure.

Fig 2: Alignment Marks On Rear Crossmember And Rear Differential Mount Rubber
Courtesy of MAZDA MOTORS CORP.
Remove the rear differential mount rubber.

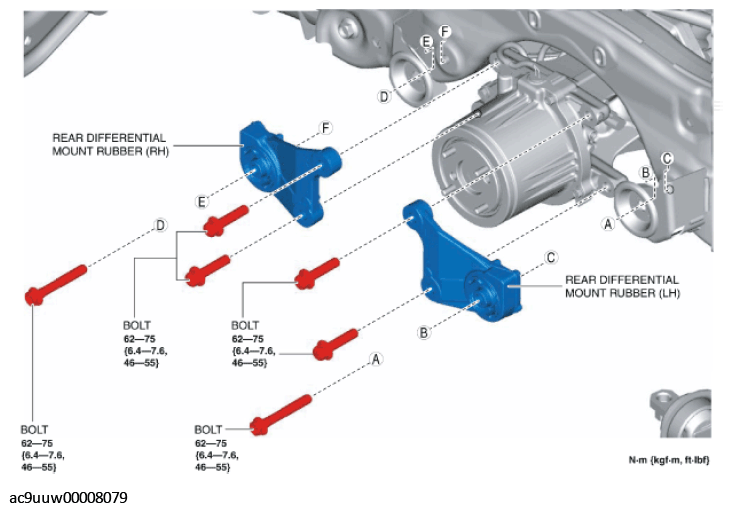

Fig 3: Removing Rear Differential Mount Rubber And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See Rear Differential Mount Rubber, Bolt Installation Note .)
