Rear Cover Disassembly Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST (49 L027 0A2) to the SST (49 0107 680A).

Fig 1: Installing SST To Engine Stand
Courtesy of MAZDA MOTORS CORP.
Install the rear differential to the SSTs.

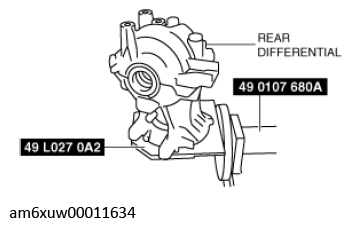

Fig 2: Installing Rear Differential To SST
Courtesy of MAZDA MOTORS CORP.
Remove the rear cover.
