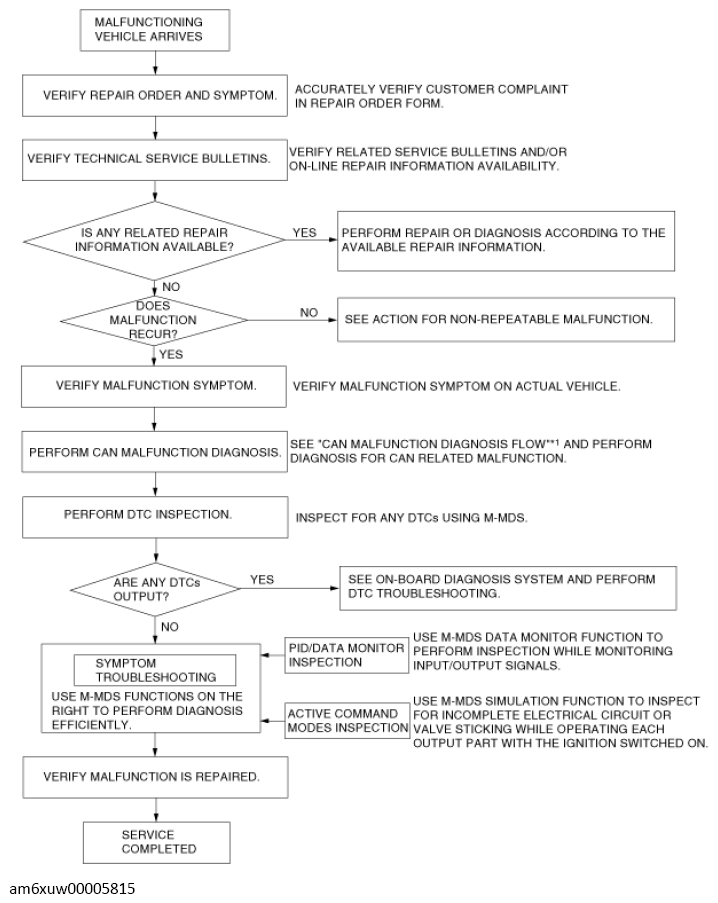

Troubleshooting Procedure

G13724209Courtesy of MAZDA MOTORS CORP.
  1. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW (VIN M) .) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW (VIN Y) .)
