Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Partially peel back the seaming welt.

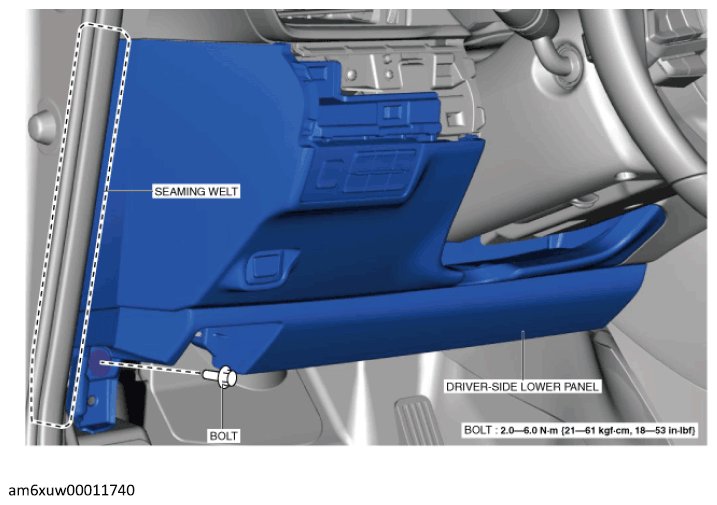

    Fig 1: Driver-Side Lower Panel Bolts With Torque Specification
    G12236362Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching hook, clips and tab.

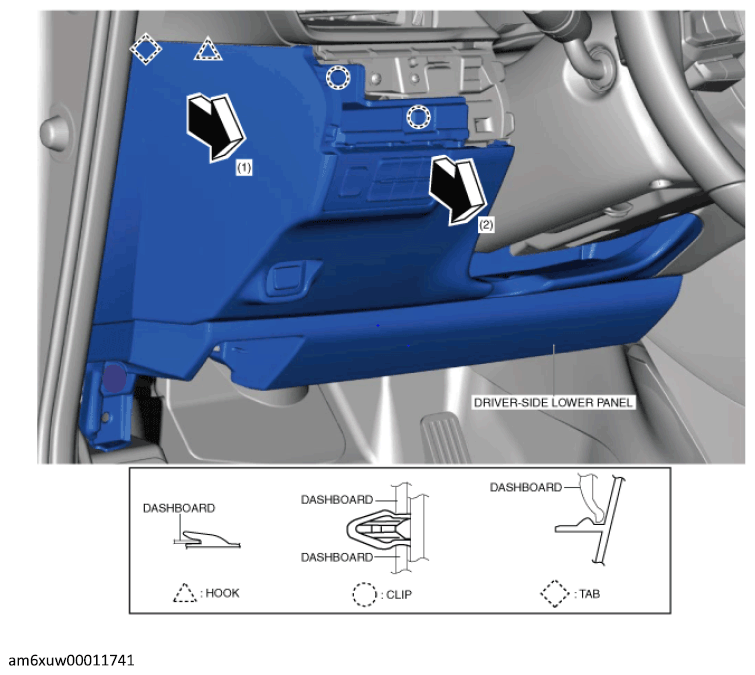

    G12236363Courtesy of MAZDA MOTORS CORP.
  6. Set the driver-side lower panel aside.
  7. Disconnect the connector.

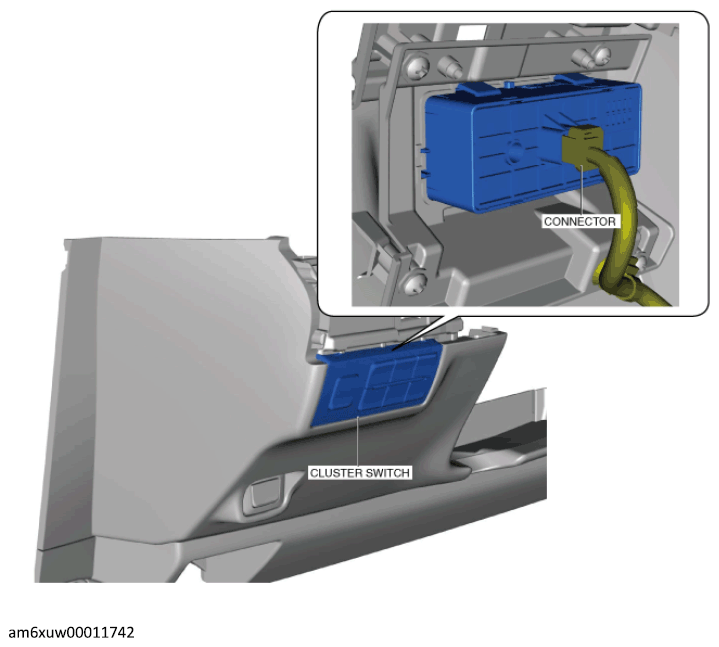

    G12236364Courtesy of MAZDA MOTORS CORP.
  8. Remove the hooks in the direction of the arrow in the order of (1), (2) shown in the figure.

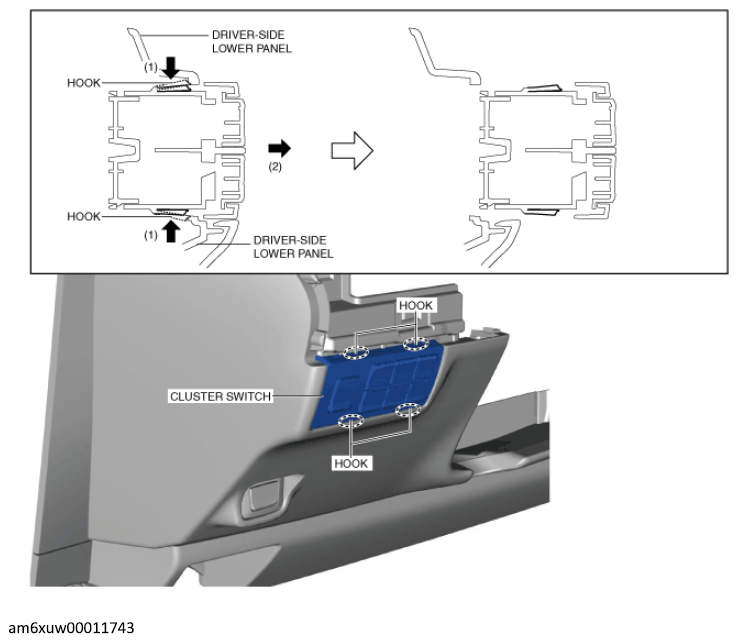

    G12236365Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
