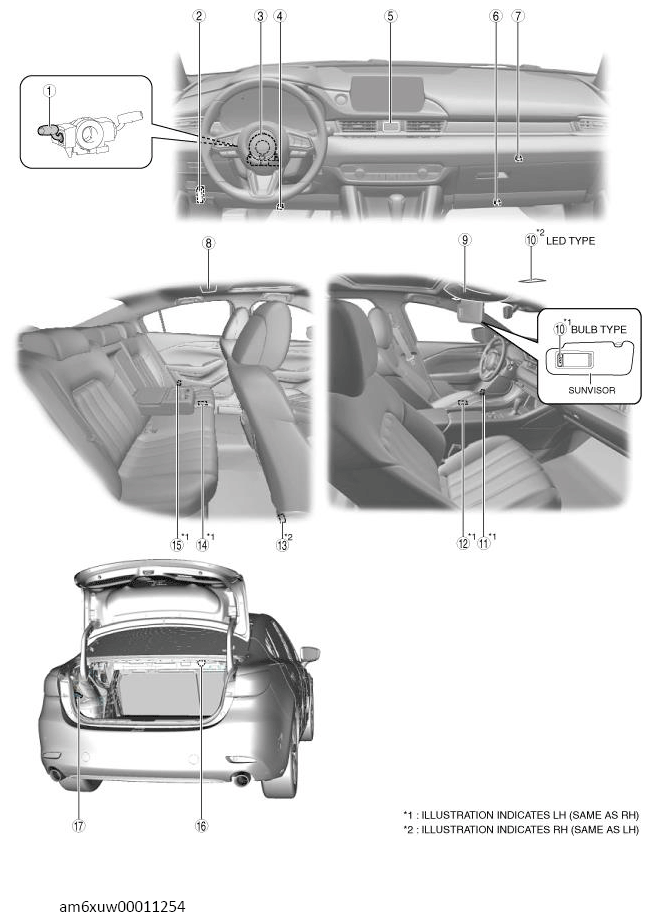

| 1 |
Light switch
(See LIGHT SWITCH REMOVAL/INSTALLATION .)
(See LIGHT SWITCH INSPECTION .) |
| 2 |
Auto leveling control module (with headlight auto leveling system and without adaptive front lighting system (AFS))
(See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION .)
(See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .) |
| 3 |
Steering angle sensor (With steering angle sensor)
(See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .)
(See STEERING ANGLE SENSOR INSPECTION .) |
| 4 |
Driver-side Foot light
(See FOOT LIGHT BULB REMOVAL/INSTALLATION .)
(See FOOT LIGHT REMOVAL/INSTALLATION .) |
| 5 |
Hazard warning switch
(See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
(See HAZARD WARNING SWITCH INSPECTION .) |
| 6 |
Passenger-side Foot light
(See FOOT LIGHT BULB REMOVAL/INSTALLATION .)
(See FOOT LIGHT REMOVAL/INSTALLATION .) |
| 7 |
Glove compartment light
(See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .) |
| 8 |
Rear map light
(See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See MAP LIGHT REMOVAL/INSTALLATION .)
(See MAP LIGHT BULB REMOVAL/INSTALLATION .)
(See MAP LIGHT INSPECTION .) |
| 9 |
Front map light
(See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See MAP LIGHT REMOVAL/INSTALLATION .)
(See MAP LIGHT BULB REMOVAL/INSTALLATION .)
(See MAP LIGHT INSPECTION .) |
| 10 |
Vanity mirror illumination
(See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .)
(See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION .)
(See VANITY MIRROR ILLUMINATION INSPECTION .) |
| 11 |
Front pocket light (With pocket light)
(See POCKET LIGHT BULB REMOVAL/INSTALLATION .)
(See POCKET LIGHT REMOVAL/INSTALLATION .) |
| 12 |
Front courtesy light
(See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See COURTESY LIGHT BULB REMOVAL/INSTALLATION .)
(See COURTESY LIGHT REMOVAL/INSTALLATION .) |
| 13 |
Rear foot light
(See FOOT LIGHT BULB REMOVAL/INSTALLATION .)
(See FOOT LIGHT REMOVAL/INSTALLATION .) |
| 14 |
Rear courtesy light
(See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See COURTESY LIGHT BULB REMOVAL/INSTALLATION .)
(See COURTESY LIGHT REMOVAL/INSTALLATION .) |
| 15 |
Rear pocket light (With pocket light)
(See POCKET LIGHT BULB REMOVAL/INSTALLATION .)
(See POCKET LIGHT REMOVAL/INSTALLATION .) |
| 16 |
Trunk compartment light
(See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .) |
| 17 |
Brake light unit (With smart brake support)
(See BRAKE LIGHT UNIT REMOVAL/INSTALLATION .)
(See BRAKE LIGHT UNIT INSPECTION .) |
