When Using M-MDS

CAUTION:
  • Perform Steps 5-6 within 30s.
  1. Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools equipped on the vehicle.
  2. Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION .)
  3. Move the vehicle to level ground.
  4. Connect the M-MDS to the DLC-2.
  5. Switch the ignition ON (engine off or on).
  6. After vehicle identification, select in the following order from the M-MDS initial screen.
    NOTE:
    • The LED headlight warning light continues flashing during the first initialization, however, continue the work because it does not indicate an improper procedure.

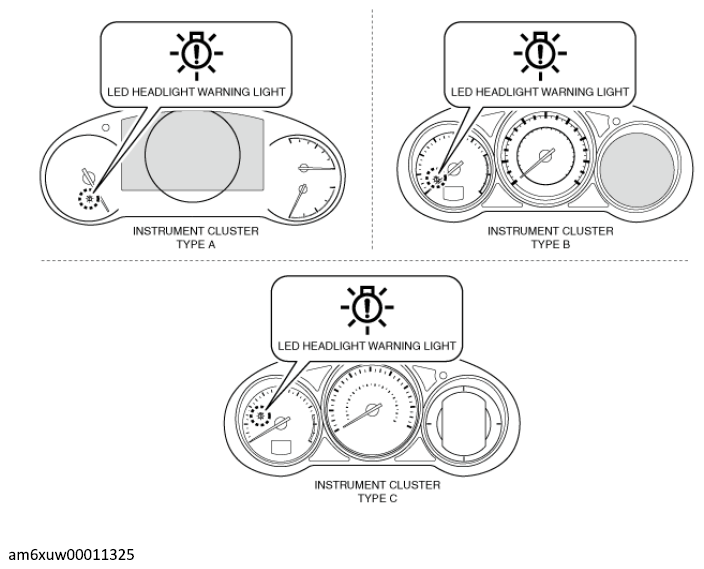

    G12234921Courtesy of MAZDA MOTORS CORP.
    1. "Electrical" (2) "Exterior Lighting" (3) "Headlamp" (4) "Auto Leveling Sensor" (5) "Auto Leveling Sensors Calibration"
  7. Verify that the LED headlight warning light flashes 3 times at 0.25 s intervals and turns off as shown in the figure.
    G11544701Courtesy of MAZDA MOTORS CORP.
  8. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
