Airflow Mode Actuator Removal

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

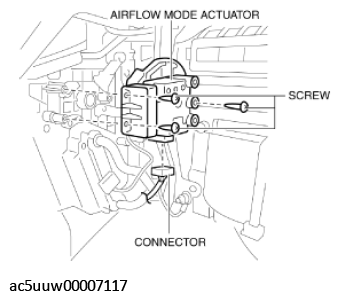

    Fig 1: Connector From Airflow Mode Actuator
    G11431873Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the airflow mode actuator.
  6. Remove the airflow mode main link.
    Fig 2: Airflow Mode Actuator And Bracket
    G09075805Courtesy of MAZDA MOTORS CORP.
  7. Remove the brackets.
    Fig 3: Bracket
    G09075806Courtesy of MAZDA MOTORS CORP.
