Thickness Variation Inspection
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Clean the disc plate-to-pad friction surface using a brake cleaner.

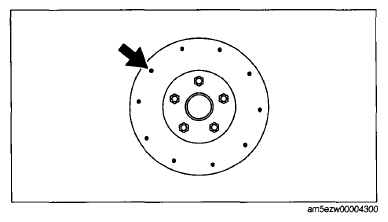

- Measure the points indicated in the illustration using a caliper (micrometer).
- Subtract the minimum value from the maximum, and if the result is not within the specification, machine the disc plate using a lathe.
Thickness variation limit
0.015 mm {0.00059 in}
WARNING:
- Do not exceed minimum disc plate thickness.
