Tunnel Member Installation Note

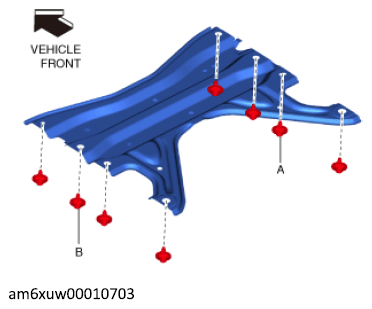

- Tighten bolt A shown in the figure to the specified torque.
Tightening torque
18-26 N.m {1.9-2.6 kgf.m, 14-19 ft.lbf}
- Tighten bolt B shown in the figure to the specified torque.
Tightening torque
18-26 N.m {1.9-2.6 kgf.m, 14-19 ft.lbf}
- Tighten the remaining bolts to the specified torque.
Tightening torque
18-26 N.m {1.9-2.6 kgf.m, 14-19 ft.lbf}
