Insulator (Front) Installation Note

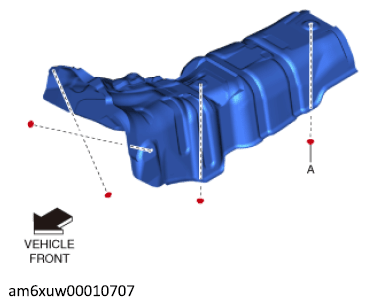

Tighten nut A shown in the figure to the specified torque.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Tighten the remaining nuts to the specified torque.
Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
