Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .)
  2. Remove in the order indicated in the table.

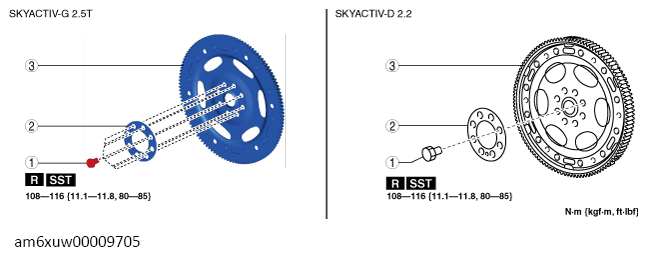

    Fig 1: Drive Plate Components With Torque Specification
    G13723155Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Drive plate installation bolts
    (See DRIVE PLATE INSTALLATION BOLTS REMOVAL NOTE .)
    (See DRIVE PLATE INSTALLATION BOLTS INSTALLATION NOTE .)
    2 Backing plate
    3 Drive plate
  3. Install in the reverse order of removal.
