Air Hose Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the air hose as shown in the figure.

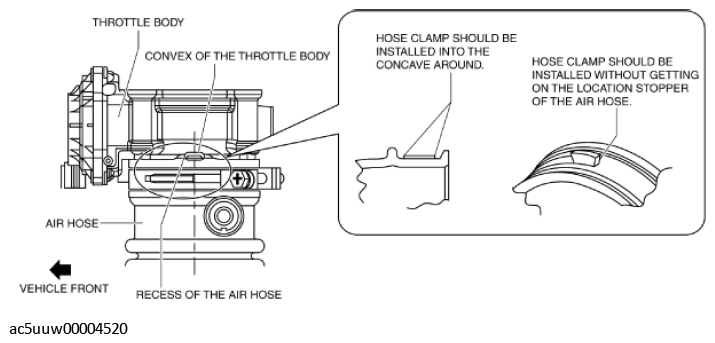

    Throttle body side

    G11429623Courtesy of MAZDA MOTORS CORP.

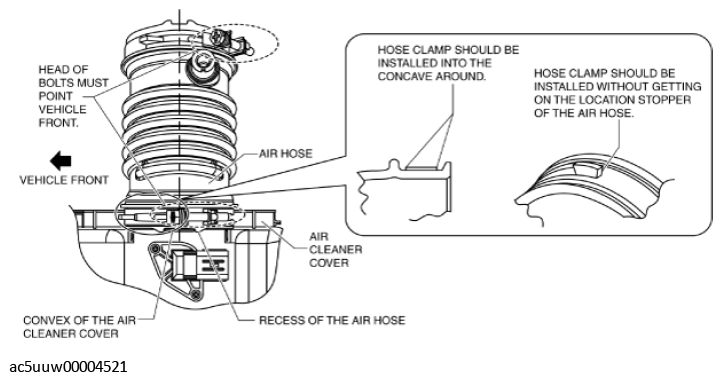

    Air cleaner side

G11429624Courtesy of MAZDA MOTORS CORP.
