Insulator Installation Note
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

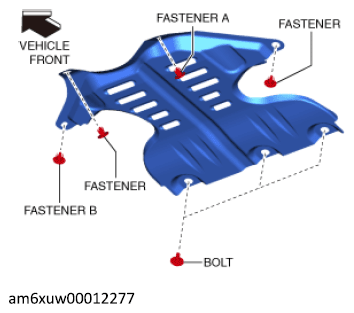

- Install fastener A shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
- Install fastener B shown in the figure below.
- Install the remaining fasteners.
- Tighten the bolts shown in the figure to the specified torque.
Tightening torque
7-9 N.m {72-91 kgf.cm, 62-79 in.lbf}
