Ambient Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

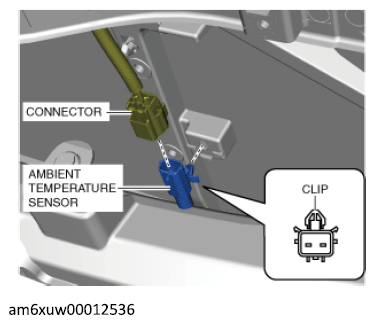

    Fig 1: Disconnecting Ambient Temperature Sensor Connector
    G12233642Courtesy of MAZDA MOTORS CORP.
  4. Detach the clip and remove the ambient temperature sensor.
  5. Install in the reverse order of removal.
