Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the valves of the manifold gauge.

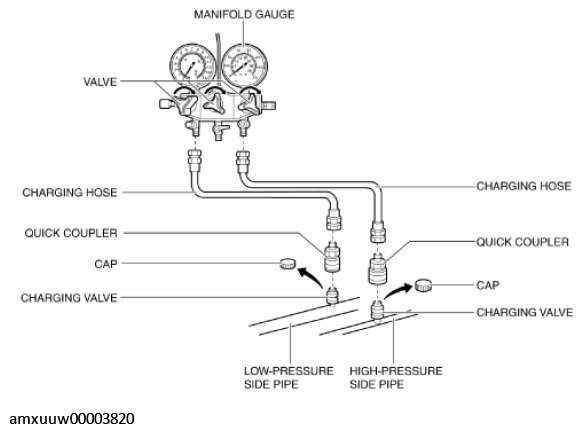

    Fig 1: Exploded View Of Manifold Gauge
    G11276379Courtesy of MAZDA MOTORS CORP.
  2. Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Connect the quick couplers to the charging valves.
