High-Mount Brake Light Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the high-mount brake light, it can be performed smoothly by folding the rear seat back.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

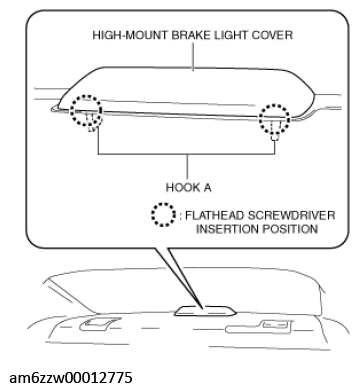

Insert a tape-wrapped flathead screwdriver into the gap between the high-mount brake light cover and rear package trim shown in the figure below.

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Gap Between High-Mount Brake Light Cover And Rear Package Trim
Courtesy of MAZDA MOTORS CORP.
While pressing the hook A in the direction of the arrow (1) shown in the figure below, lift up the high-mount brake light cover in the direction of the arrow (2) shown in the figure below to pull out the hooks A from the rear package trim.

Fig 2: Lifting Up High-Mount Brake Light Cover
Courtesy of MAZDA MOTORS CORP.
Move the high-mount brake light cover in the direction of the arrow (1) shown in the figure below to pull out the hooks B from the rear package trim.

Fig 3: Moving High-Mount Brake Light Cover
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

Fig 4: High-Mount Brake Light Connector
Courtesy of MAZDA MOTORS CORP.

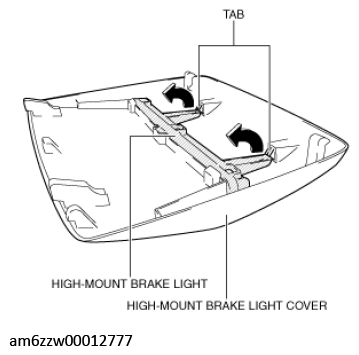

Move the high-mount brake light in the direction of the arrow shown in the figure below to detach the high-mount brake light cover tabs from the high-mount brake light.

Fig 5: Detaching High-Mount Brake Light Cover Tabs From High-Mount Brake Light
Courtesy of MAZDA MOTORS CORP.
Remove the high-mount brake light.
Install in the reverse order of removal.
