Foot Light Removal/Installation: Rear

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Remove the screw.

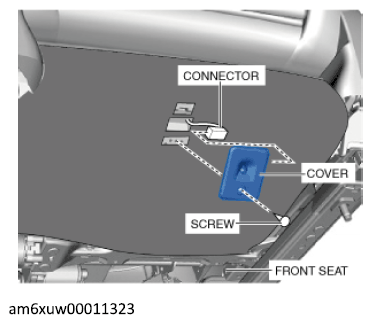

    Fig 1: Front Seat, Cover, Connector And Screw
    G12185332Courtesy of MAZDA MOTORS CORP.
  4. Remove the cover.
  5. Disconnect the connector.
  6. While pressing hooks in the direction of arrow shown in the figure below and remove the foot light from the cover.

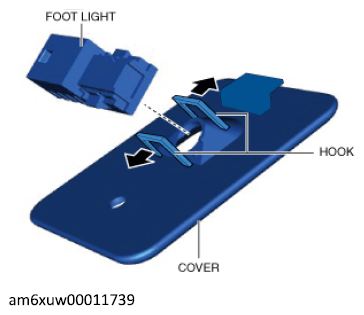

    Fig 2: Foot Light From Cover
    G12185333Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
