Washer Motor Inspection

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Disconnect the washer motor connector from the washer motor.

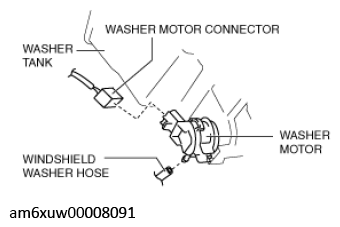

Fig 1: Disconnecting Washer Motor Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the windshield washer hose from the washer motor.
WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.
After connecting washer motor terminal A to the positive battery terminal, and terminal B to ground, verify that washer fluid sprays from the front side of the washer motor.

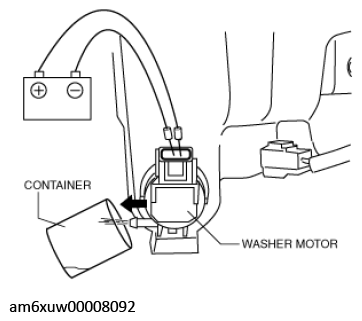

Fig 2: Checking Washer Fluid Sprays Of Washer Motor
Courtesy of MAZDA MOTORS CORP.

Fig 3: Washer Motor Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
