SUNVISOR Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure below, detach the tab, and remove the sunvisor cap.

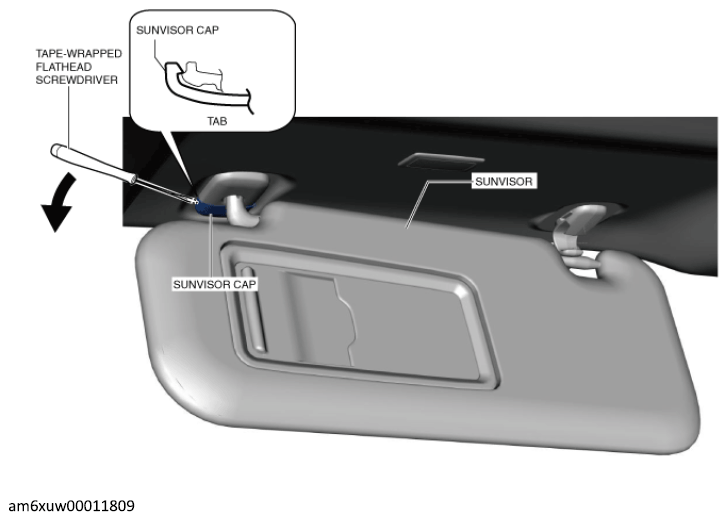

    Fig 1: Sunvisor Cap
    G12236516Courtesy of MAZDA MOTORS CORP.
  3. Remove the screw.

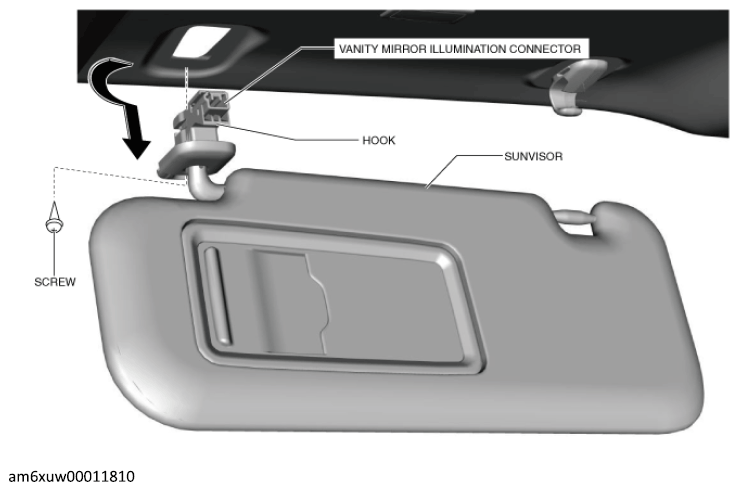

    Fig 2: Moving Sunvisor
    G12236517Courtesy of MAZDA MOTORS CORP.
  4. Move the sunvisor in the direction of the arrow shown in the figure below and detach the hook.
  5. Disconnect the vanity mirror illumination connector.
  6. Press the center adapter tabs in the direction of the arrow (1) shown in the figure below using two tape-wrapped flathead screwdrivers.

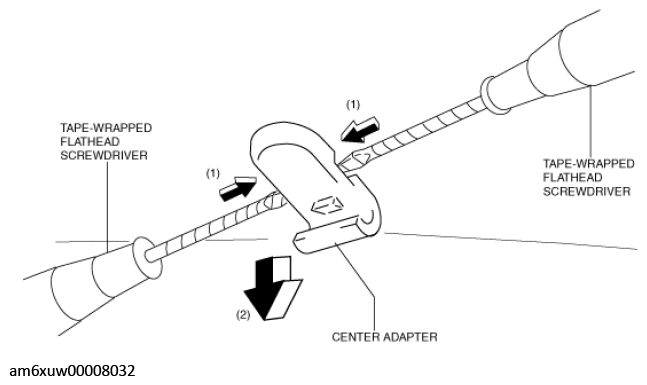

    Fig 3: Pressing Center Adaptor Tabs Using Flat Head Screwdriver
    G11544616Courtesy of MAZDA MOTORS CORP.
  7. Remove the center adapter in the direction of the arrow (2) shown in the figure below.
  8. Install in the reverse order of removal.
