Front Center Speaker Removal/Installation
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If the procedure is performed while holding the front center speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)

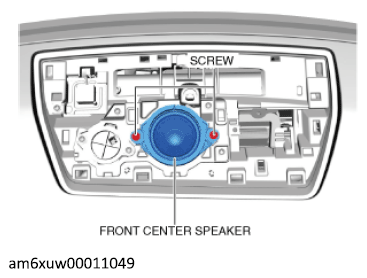

- Remove the screws.
- Disconnect the front center speaker connector.
- Remove the front center speaker.
- Install in the reverse order of removal.
